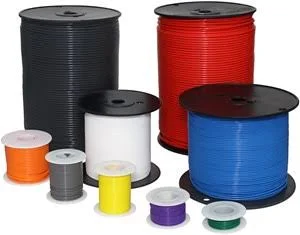

PTFE High Temperature Stranded Wire (Gauge: 14 - Length: 500 ft., Color: White) Wire-TF-14-09-500

Description

Reinforced with abrasion resistant mineral fillers. Low power loss, ideal for high frequency applications. Gauge (AWG) Number of Strands Gauge of Strands (AWG) Conductor Diameter Finished Wire Diameter Max. Wire for high temperature use having good flexibility. KG/Km 10 37 26 .108 2.74 .127 3.23 .141 3.58 1.19 3.90 34.9 51.9 12 19 25 .084 2.13 .107 2.72 .121 3.07 1.81 5.94 22.6 33.6 14 19 27 .067 1.70 .088 2.24 .102 2.59 2.88 9.45 14.7 21.9 16 19 29 .053 1.35 .073 1.85 .087 2.21 4.53 14.8 9.77 14.5 18 19 30 .047. Conductor: Silver-plated stranded copper wire Insulation: Extruded PTFE Insulation, wall thickness.010 in (.25 mm) Temperature Range: -65癈 to +200癈 (-85癋 to +392癋) Compliances: MIL-W-16878E/4 Type E, MIL-STD-104, Passes UL VW-Flame Test. For use where abrasion resistance is required. Resists solvents, grease, ozone and other chemicals. PTFE resists solvents, grease, ozone and other chemicals. It has excellent thermal aging, solder damage, flame, and moisture resistance. M16878/4 is used in high temperature electronic applications or where abrasion resistance is required. Recommended for critical applications. Recommended for mission critical applications such as: aviation, commercial, racing. Weight Min Max Inch mm Inch mm Inch mm 1000-ft Km LBS./1000 ft. Voltage Rating: 600 VAC Splices: Due to the nature of the PTFE insulation, this product contains splices and is unlikely available in one continuous length. Resistance (DC at 20癈) Ohm/per Nom.

Key Features

• Weight Min Max Inch mm Inch mm Inch mm 1000-ft Km LBS./1000 ft.
• Wire for high temperature use having good flexibility.
• For use where abrasion resistance is required.
• Conductor: Silver-plated stranded copper wire Insulation: Extruded PTFE Insulation, wall thickness.010 in (.25 mm) Temperature Range: -65癈 to +200癈 (-85癋 to +392癋) Compliances: MIL-W-16878E/4 Type E, MIL-STD-104, Passes UL VW-Flame Test.
• Gauge (AWG) Number of Strands Gauge of Strands (AWG) Conductor Diameter Finished Wire Diameter Max.
• Voltage Rating: 600 VAC Splices: Due to the nature of the PTFE insulation, this product contains splices and is unlikely available in one continuous length.
