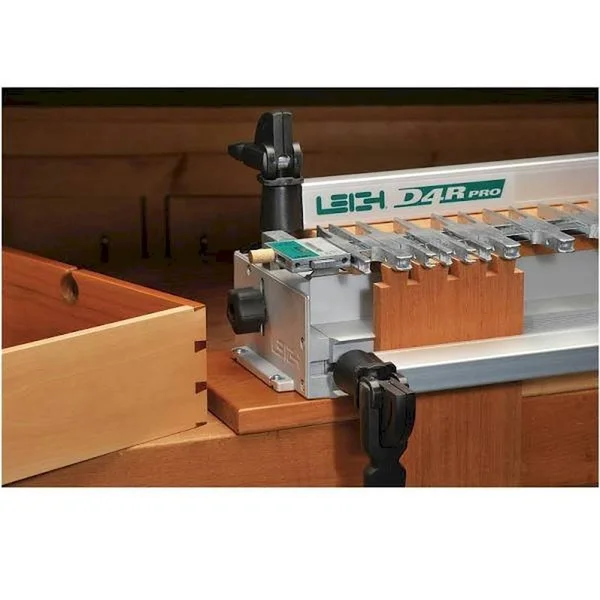

Leigh D4R-PRO Dovetail Jig

Description

The top side stops have a 3/8 inch recess for rabbeted boards. Perfect fitting joints for tiny boxes or large case pieces can be produced in a variety of patterns by simply changing the adjustable guide fingers. The new D4R-24 jig features a one piece aluminum extrusion base with machined-in non marring textured clamping surfaces and machined-in side stops on the top and front of the jig body. One of the best just got better! Wooden pieces are clamped into the jig quickly and easily with the cam action clamps which can be adjusted for different stock thickness in seconds, or used to repeat the same clamp tension instantly. Maximum pin thickness 11/4 inch. Also included is a 1/2 inch to 8mm collet reducer and a 7/16 inch template guide bushing, a comprehensive instruction manual and instructional DVD. Through or half blind dovetails can be easily set up by simply flipping the finger assembly over. Like its predecessor, the D4R easily produces handmade looking dovetail pins and tails. Includes three carbide router bits, a 1/2 inch D x 8 x 8mm dovetail bit and a 5/16 inch x 1 inch x 8mm straight bit for through dovetails, and a 1/2 inch D x 14 x 8mm dovetail bit for half blind dovetails. Accepts boards up to 24 inch wide. Jigs are meticulously engineered and constructed.

Key Features

• The top side stops have a 3/8 inch recess for rabbeted boards.
• Includes three carbide router bits, a 1/2 inch D x 8 x 8mm dovetail bit and a 5/16 inch x 1 inch x 8mm straight bit for through dovetails, and a 1/2 inch D x 14 x 8mm dovetail bit for half blind dovetails.
• Like its predecessor, the D4R easily produces handmade looking dovetail pins and tails.
• Jigs are meticulously engineered and constructed.
• Also included is a 1/2 inch to 8mm collet reducer and a 7/16 inch template guide bushing, a comprehensive instruction manual and instructional DVD.
• The new D4R-24 jig features a one piece aluminum extrusion base with machined-in non marring textured clamping surfaces and machined-in side stops on the top and front of the jig body.
