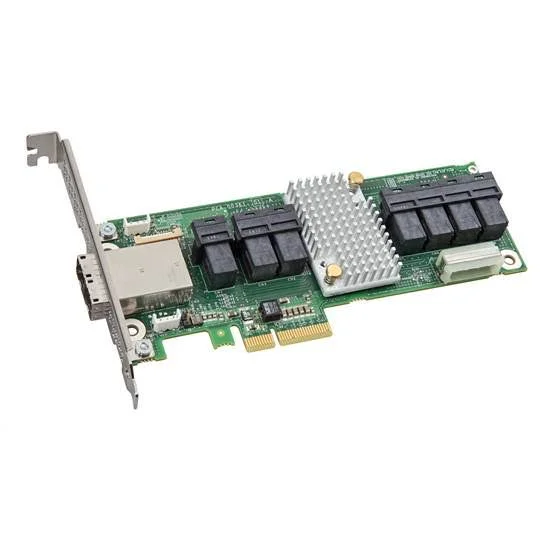

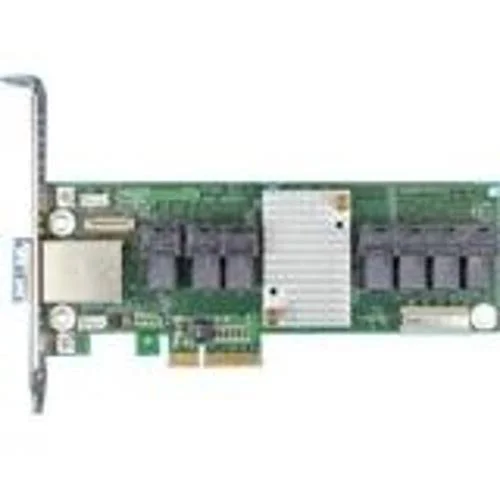

Intel RES3FV288 Raid Expander

Description

As the perfect complement for Intel's SAS-3 generation RAID cards, the RES3FV288 offers ultimate flexibility for architecting a high drive count (>8 drive) storage solution in any sized system. Each expander port is capable of performing SAS and SATA transfers based on the speed of the host or target at either 12Gb/s or 6Gb/s. Furthermore, 6Gb/s signals are aggregated by the expander to allow for 12Gb/s communication with RAID add-in cards capable of this higher data rate. The RES3FV288, powered by a high performance SAS 3.0 capable expander, enables the connection of up to 28 inside-the-box SAS or Serial ATA (SATA) devices; plus it delivers 8 external ports for connection to a JBOD. For a low-cost value-added alterative to high port count RAID cards, select the Intel RAID Expander RES3FV288. As the complement for Intel's SAS-3 generation RAID cards, the RES3FV288 offers flexibility for architecting a high drive count (>8 drive) storage solution in any sized system. The RES3FV288 supports management functions such as discovery and enclosure management, and can be cascaded to accommodate as many drives as the associated SAS/RAID card allows. Designed with a low profile, MD2 form factor, the RES3FV288 can be used in any server add-in card slot including a low profile slot in a 2U rack system.

Key Features

• Designed with a low profile, MD2 form factor, the RES3FV288 can be used in any server add-in card slot including a low profile slot in a 2U rack system.
• For a low-cost value-added alterative to high port count RAID cards, select the Intel RAID Expander RES3FV288.
• The RES3FV288 supports management functions such as discovery and enclosure management, and can be cascaded to accommodate as many drives as the associated SAS/RAID card allows.
• Furthermore, 6Gb/s signals are aggregated by the expander to allow for 12Gb/s communication with RAID add-in cards capable of this higher data rate.
• The RES3FV288, powered by a high performance SAS 3.0 capable expander, enables the connection of up to 28 inside-the-box SAS or Serial ATA (SATA) devices; plus it delivers 8 external ports for connection to a JBOD.
• As the complement for Intel's SAS-3 generation RAID cards, the RES3FV288 offers flexibility for architecting a high drive count (>8 drive) storage solution in any sized system.
