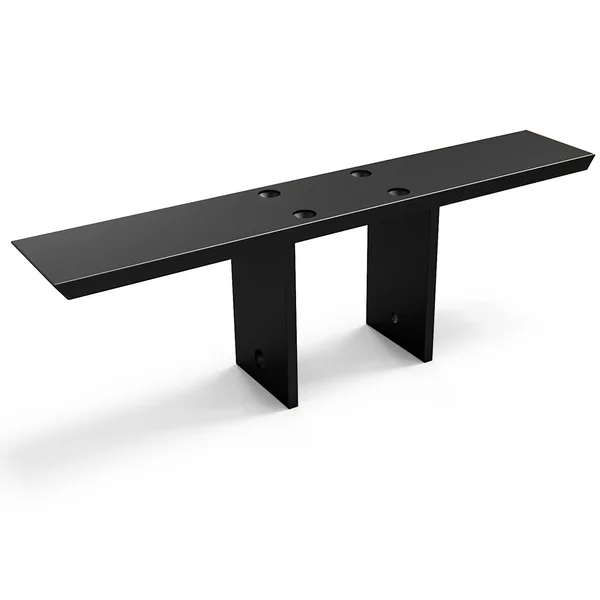

Hidden Center Mount Countertop Bracket - Knee Wall Support, Size: 30

Description

with screws using the holes you drilled. per bracket Material: Solid 1/2" Thick x 2.5" Wide American Steel Finish: Premium powder coated finishes Additional Information - Made in the USA 6 Wood Screws are included with each bracket for your convenience Use – Support Offset Bars Support Countertop on. Used to support Granite, Quartz, Wood, Formica, Concrete and all other countertop materials. This support is nearly invisible creating a clean look. Designed for applications that require countertop support on both sides of a knee or pony wall. Securely mount the bracket to the stud. What Size Bracket Should You Use? For this you would have to drill holes in the bracket and secure your wood shelf, desk, counter etc... (metal studs need to be reinforced!) Specifications - Dimensions: Horizontal support: 2½" wide x ½" thick x 14" to 44" Vertical flange (straddle): 3.60" wide x 4" Tall x ½" thick (made to straddle 2x4 wall. Support anything you need to including Granite, Quartz, Natural Stone, Concrete, Wood, Formica and all other materials. Prior to setting the top in place, run a bead of high-quality silicone adhesive down the center of each bracket. You would want to support that with a bracket measuring 28" to 36". Example Bracket Size for Project – Let’s say you want to support a 40” wide countertop on your knee or pony wall. Choose a bracket size that will support at least 2/3 of the supported surface. Also refereed to as cantilevered support. Carry Capacity: 400 lbs.

Key Features

• Used to support Granite, Quartz, Wood, Formica, Concrete and all other countertop materials.
• (metal studs need to be reinforced!) Specifications - Dimensions: Horizontal support: 2½" wide x ½" thick x 14" to 44" Vertical flange (straddle): 3.60" wide x 4" Tall x ½" thick (made to straddle 2x4 wall.
• Vertical steel flanges (straddle) provide additional stability and can be re-positioned to fit your needs such as a 2x6 wall, etc.
• Made to straddle 2x4 construction.
• Support anything you need to including Granite, Quartz, Natural Stone, Concrete, Wood, Formica and all other materials.
• Note: using this bracket in a non-cantilevered application like this does reduce the recommended carrying capacity from 400lbs to 325lbs each.
