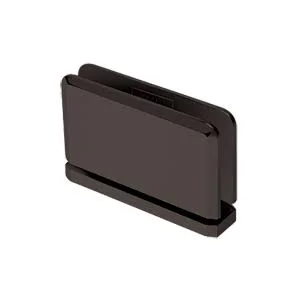

CRL Srpph01bl Black Senior Prima 01 Series Top or Bottom Mount Hinge

Description

Advantages of CRL Senior Prima Hinges include the fact that they carry the majority of the weight on the bottom and have the ability to be inset from the wall enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass the hinge will hold up to 145 lbs. 5 297 313) Custom finishes are available on request. (28 kg) with a maximum door width of 28" (711 mm). Cut-out dimensions for CRL hinges may not match. Cut-Out Required Includes: Gaskets Screws and Glass Fabrication Dimensions Senior and Junior Prima Hinges are patented (Patent No. These Pivot Hinges are self-centering with four springs for maximum retention strength. The SRPPH01 Model is adaptable to our Deluxe Header System. Our SRPPH06 Model is only compatible with our EZ-Adjust Header System. When placed vertically either style can be used in movable transom installations. SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass the hinge will hold up to 145 lbs. SPECIFICATIONS: Glass Thickness: Senior Prima 1/2" (12 mm) Tempered Safety Glass Junior Prima 1/4" (6 mm) Tempered Safety Glass Special Feature: Top and Bottom Mount allows more glass exposure. If hinges are to be used for other than their intended purpose approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge.

Key Features

• SPECIFICATIONS: Glass Thickness: Senior Prima 1/2" (12 mm) Tempered Safety Glass Junior Prima 1/4" (6 mm) Tempered Safety Glass Special Feature: Top and Bottom Mount allows more glass exposure.
• SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass the hinge will hold up to 145 lbs.
• (66 kg) with a maximum door width of 36" (914 mm).
• Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
• JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass the hinge will hold up to 62 lbs.
• (28 kg) with a maximum door width of 28" (711 mm).
