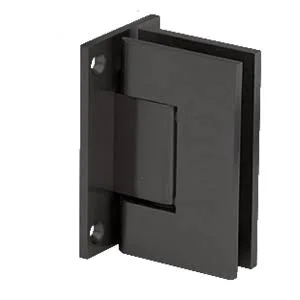

CRL GEN037MBL Matte Black Geneva 037 Series Wall Mount Full Back Plate Standard Hinge Shower Door Hardware

Description

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. If hinges are to be used for other than their intended purpose approval must be obtained from the CRL Shower Door Technical Sales Department. In addition Custom Pivot Pins are available to accommodate "off-angle" installations. (54 kg) with a maximum door width of 32" (813 mm). Contact Technical Sales Shower Door Division. Offset Models come with the Pin pre-set to 85 Degrees (5 degree tighter closure into shower interior). If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). Cut-out dimensions for CRL hinges may not match those of other brands. SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position or 5 degree Pre-Set Model for tighter closure into shower interior. GENP1N) are available to accommodate "off-angle" installations. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass. A variety of six styles gives design flexibility including three different Wall Mount and three different Glass-to-Glass types. Made of solid brass with all moving parts (pins and springs) in stainless steel. Custom Pivot Pin: Custom Pivot Pins (Cat. (36 kg) with a maximum door width of 28" (711 mm).

Key Features

• The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass.
• GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
• Made of solid brass with all moving parts (pins and springs) in stainless steel.
• SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position or 5 degree Pre-Set Model for tighter closure into.
• Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs.
• Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs.
