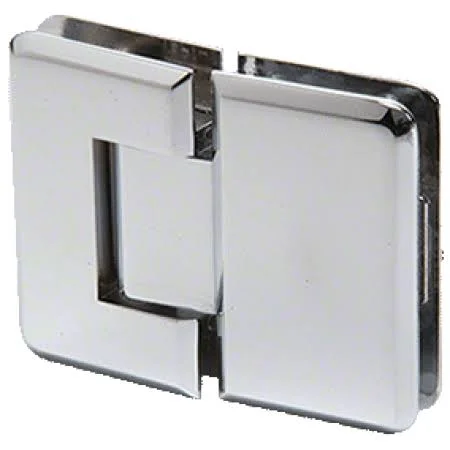

CRL Chrome 180 Degree Glass-to-Glass Plymouth Series HINGE, Silver

Description

(64 kg) and a maximum door width of 39" (1 m) using only two hinges. This produces a frameless aesthetic by reducing the amount of hardware needed. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. Cut-out dimensions for CRL hinges may not match those of other brands. Maximum two hinges per door. Glass fabrication is required. If hinges are to be used for other than their intended purpose approval must be obtained from the CRL Shower Door Technical Sales Department. CRL Plymouth Series Hinges have the ability of supporting wider heavier doors with a maximum door weight of 140 lbs. NOTE: Do not use three hinges. Use only the template included with this hinge. Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) 39" (1 m) width the two hinges will hold up to 140 lbs. They also deliver increased self-centering force and the heat-treated stainless steel springs produce enhanced durability. These hinges utilize an integrated stiffening beam to minimize clamping plate flex resulting in exceptional holding power. SPECIFICATIONS: Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass Construction: Solid Brass Hinge Swings: 90 Degree in and 90 Degree Out (at Factory Set Position) Closing Type: Self-Centering when within 15 Degree of Closed.

Key Features

• (64 kg) and a maximum door width of 39" (1 m) using only two hinges.
• SPECIFICATIONS: Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass Construction: Solid Brass Hinge Swings: 90 Degree in and 90 Degree Out (at Factory Set Position) Closing Type: Self-Centering when within 15 Degree of Closed.
• CRL Plymouth Series Hinges have the ability of supporting wider heavier doors with a maximum door weight of 140 lbs.
• Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) 39" (1 m) width the two hinges will hold up to 140 lbs.
• They also deliver increased self-centering force and the heat-treated stainless steel springs produce enhanced durability.
• Glass fabrication is required.
