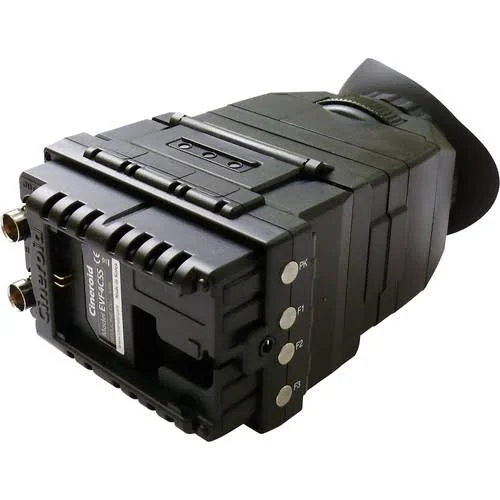

Cineroid EVF4CSE Electronic Viewfinder with SDI Input Loop Through Output

Description

Clip Guide There are three clip guide modes, color, zebra and both in combination. The Cineroid EVF4CSE Electronic Viewfinder with SDI Input / Loop-Through Output offers an eyepiece view or an LCD view. Color mode provides a colored wash to overexposed areas, while zebra can be set to fixed or moving lines and can display at 3, 5, 8, 11% above or below the trigger point. Peaking highlights the sharpest (most in focus) areas of the image with a color outline. The SDI input and loop-through SDI output allows you to feed the EVF and send the unmodified signal downstream to an optional director's viewfinder, video village or other display / recorder. False Color The False Color feature provides under/over luminance warning by presenting the image as a series of color values representing exposure. The EVF4CSE features two modes. The EVF4CSE is powered by optional Cannon LP-E6 batteries or from an optional external power supply, that provides 6 to 17 VDC. A built-in adjustable diopter and removable extension frame allows you to use the EVF even without having perfect eyesight. Crop Guide Darkens portions of the viewing area to help frame a shot in accordance with what it will look like when later cropped to be viewed in different aspect ratios. The eyepiece/optical loupe can be flipped up out of the way much like a traditional ENG viewfinder or detached completely to reveal a 3.2" LCD with an 800 x 480 resolution. The USB port is for firmware updates.

Key Features

• A built-in adjustable diopter and removable extension frame allows you to use the EVF even without having eyesight.
• The eyepiece/optical loupe can be flipped up out of the way much like a traditional ENG viewfinder or detached completely to reveal a 3.2" LCD with an 800 x 480 resolution.
• The EVF supports a variety of focus and exposure tools, including two forms of peaking, false color, crop guide, pixel-to-pixel mapping and image flip.
• The EVF4CSE is powered by optional Cannon LP-E6 batteries or from an optional external power supply, that provides 6 to 17 VDC.
• The SDI input and loop-through SDI output allows you to feed the EVF and send the unmodified signal downstream to an optional director's viewfinder, video village or other display / recorder.
• A headphone jack and built-in speaker allow you to monitor audio and a 1/4"-20 threaded mounting hole allows you to mount the EVF to your camera using optional articulating arms.
