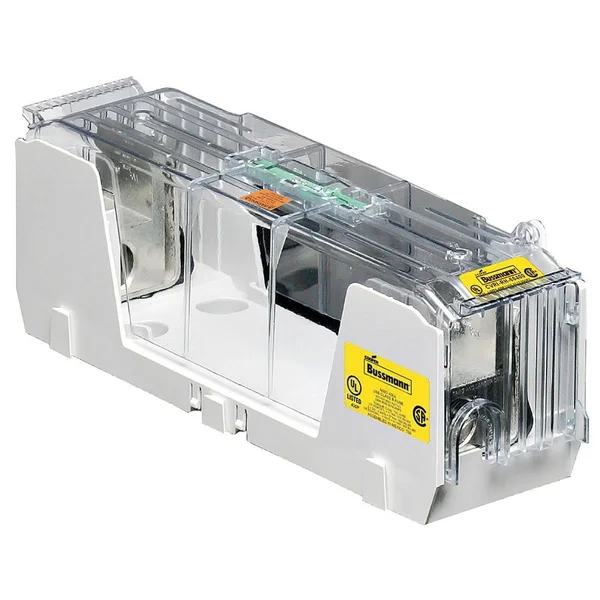

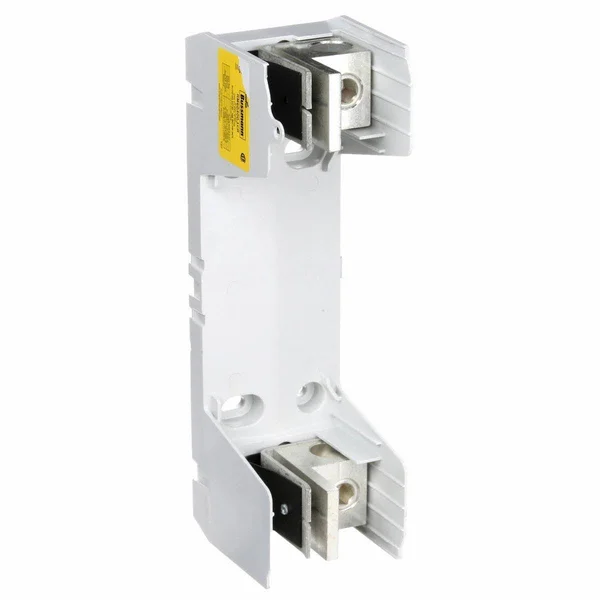

Bussmann RM60400-1CR Fuse Block - Industrial, 400A, 1 Pole

Description

Bussmann Fusetron 1-Pole Class R Knifeblade fuse block features thermoplastic body and tin-plated aluminum box lug terminals. It accommodates copper/aluminum solid/stranded wire of size 3/0 - 4 AWG. Fuse block has integral dovetails that allow assembly of multiple poles at point-of-use for greater application flexibility. Fuse block has voltage rating of 600 VAC and current rating of 400 Amps. It has torque rating of 57 Nm. Bussmann Fusetron 1-Pole Class R Knifeblade fuse block features thermoplastic body and tin-plated aluminum box lug terminals. It accommodates copper/aluminum solid/stranded wire of size 3/0 - 4 AWG. Fuse block accommodates solid/stranded wire of size 600 kcmil, 500kcmil-4 AWG. It features standard phase barriers between poles for additional safety. Fuse block has IP20 finger-safe covers to allow for inspecting wire terminations or thermograph measurements without removing cover. Fuse block measures 12.500 Inch x 3.700 Inch x 4.800 Inch. It operates at temperature range of -40 to 120 deg C. Fuse block has built-in lockout/tag out feature to improve safety and standard fuse clip reinforcing springs to enhance electrical contact. Fuse block is UL listed and CSA certified. It offers ease of use Fuse block is self-extinguishing device rated under UL 94V0 and has self-extinguishing covers rated under UL 94HB.

Key Features

• Fuse block has IP20 finger-safe covers to allow for inspecting wire terminations or thermograph measurements without removing cover.
• Fuse block has integral dovetails that allow assembly of multiple poles at point-of-use for greater application flexibility.
• Fuse block measures 12.500 Inch x 3.700 Inch x 4.800 Inch.
• Bussmann Fusetron 1-Pole Class R Knifeblade fuse block features thermoplastic body and tin-plated aluminum box lug terminals.
• It features standard phase barriers between poles for additional safety.
• It accommodates copper/aluminum solid/stranded wire of size 3/0 - 4 AWG.
