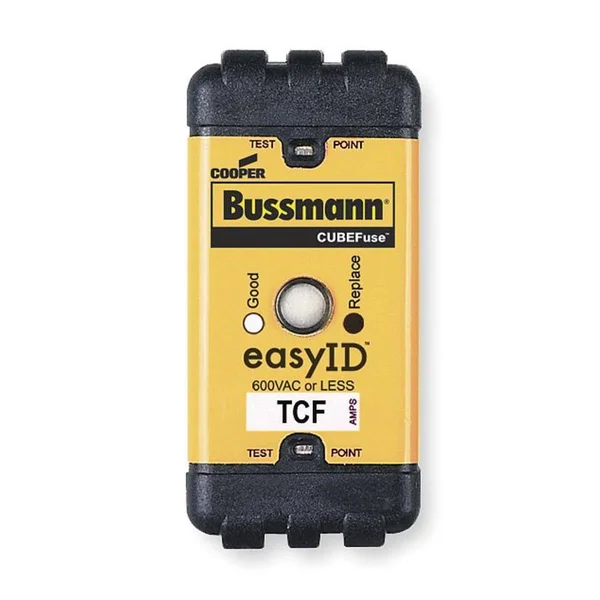

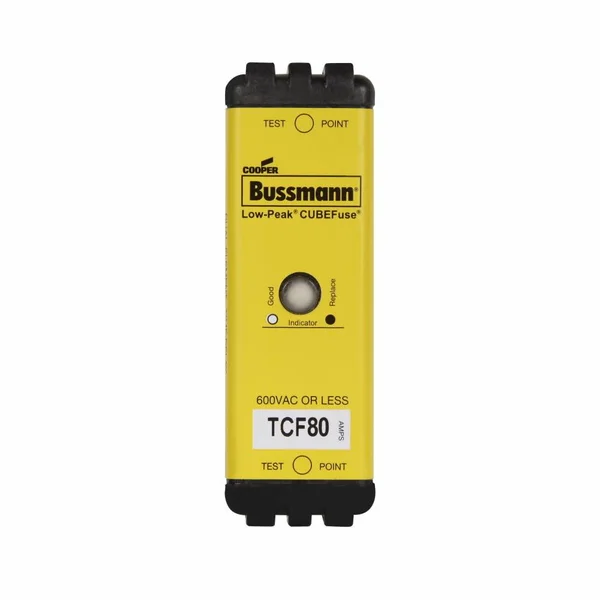

Bussmann 80A Time Delay Class J Fuse 600VAC/300VDC - TCF80

Description

Finger-Safe fuse is UL listed/CSA certified/CE compliant and meets IEC requirements. It measures 1 Inch x 3.010 Inch. Dual-element fuse can be used as a time-delay or a slow-blow fuse making it economical. Low voltage fuse finds application in electrical panelboards, industrial control, machinery disconnects and required finger safe systems. The long time-delay fuse reduces circuit openings due to temporary overloads and transient surges. Bussmann Low-Peak CubeFuse Class J Finger-Safe branch circuit rated fuse comes with an element window to visually inspect blown element. It is suitable for branch circuit disconnect and branch circuit protection. It features dual-element construction with a minimum of 10 seconds time-delay at 500% of rated current providing ultimate protection. Fuse offers low watt loss power consumption and has robust cycling that can withstand inrush current. It features dual-element construction with a minimum of 10 seconds time-delay at 500% of rated current providing protection. Fuse provides a faster response to minimize destructive thermal and magnetic forces. Fuse provides a faster response to minimize destructive thermal and magnetic forces. It features dual-element construction with a minimum of 10 seconds time-delay at 500% of rated current providing protection.

Key Features

• Fuse provides a faster response to minimize destructive thermal and magnetic forces.
• It features dual-element construction with a minimum of 10 seconds time-delay at 500% of rated current providing protection.
• The long time-delay fuse reduces circuit openings due to temporary overloads and transient surges.
• Bussmann Low-Peak CubeFuse Class J Finger-Safe branch circuit rated fuse comes with an element window to visually inspect blown element.
• It measures 1 Inch x 3.010 Inch.
• Dual-element fuse can be used as a time-delay or a slow-blow fuse making it economical.
